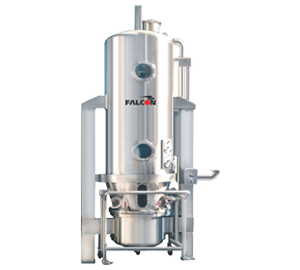

Fluid Bed Dryer works on the principal of fluidised to dry the material of granules with the help of hot air and that will creates turbulence while flowing through it.
Salient Features
- Contact parts SS 316 &Non contact parts SS304
- Uniform drying with quickly exchange the granules
- Single piece retarding chamber
- Heating media steam or electrical heater
- Auto shaking filter bag arrangement
- Exhaust Blower
- Container / Filter Bag / Inlet locking through inflatable gasket
- Inbuilt on/off damper
- Online sampling port
TECHNICAL SPECIFICATIONS
| MODEL / Size | 5 | 10 | 30 | 60 | 120 | 160 |
|---|
|
| Container Volume (Liters) | 18 | 35 | 115 | 215 | 410 | 475 |
| Working Volume (Kg) | 4.0 to 6.0 | 8.0 to 12.0 | 20 to 30 | 45 to 60 | 100 to 120 | 140 to 160 |
| Blower Motor HP | 3 | 5 | 7.5 | 12.5 | 25 | 25 |
| Drying Air Temperature | 45-85℃ | 45-85℃ | 45-85℃ | 45-85℃ | 45-85℃ | 45-85℃ |
| Steam Consumption (Kg/Hr) | 15 | 25 | 45 | 65 | 90 | 120 |
| Electrical Heating (kw) | 10 | 15 | 25 | 45 | 60 | 65 |
