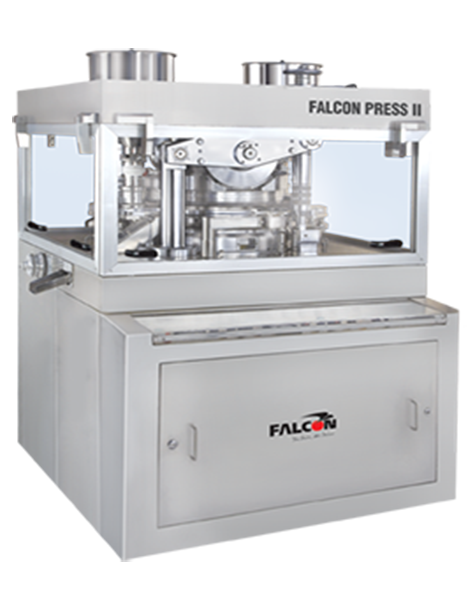

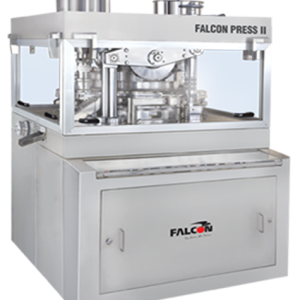

Salient Features:- Press II Double Sided Tablet Press
- High Speed Tablet Press for sale with outstanding engineering, performance and reliability.
- Turret of SG IRON 500/7 Graded Casting
- Quality tablet production at high speed.
- Double Sided Tablet Press in compliance with cGMP Guidelines
- Higher Output up to 439200 tablets per hour (for 61 Station)
- Simple and convenient operation, offering operator Protection, cleanliness and ease of maintenance.
- All the tablet parameters can be fine tuned during the operation of the machine from outside the tableting zone.
- Three piece Turret with Stainless Steel 316 (Optional)
- Die Plate Gravity Feeding System (Feed Frame)
- AC Variable Frequency Drive for Main Motor
- Easy outside controls.
- AC invertor variable drive for main motor with electro magnetic clutch.
- Auto lubrication with fine tuning valve and timer.
- Extremely robust quality engineering at cheap price, house in an easily accessible cabinet.
Also Available to buy with By-Layer Attachment.
TECHNICAL SPECIFICATIONS:- Press II Double Sided Tablet Press
| TYPE | FXT II – 37 | FXT II – 45 | FXT II – 55 | FXT II – 61 |
|---|
| Number of Stations | 37 | 45 | 55 | 61 |
| Type of Tooling | D | B | BB | BB |
| Output tablets/hour* | 53280 to 266400 | 64800 to 324000 | 79200 to 396000 | 87840 to 439200 |
| Max. operating pressure (main) | 10 Tons | 6.5 Tons | 6.5 Tons | 6.5 Tons |
| Max. tablet diameter | 23 mm | 16 mm | 11.1 mm | 11.1 mm |
| Max. Depth of Fill | 20 mm | 17 mm | 17 mm | 17 mm |
| Upper Punch Penetration | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm | 3 to 6 mm |
| Power (total) | 7 kW / 9.5 hp | 7 kW / 9.5 hp | 7 kW / 9.5 hp | 7 kW / 9.5 hp |
| Main Electric Motor | 5.5 kW / 7.5 hp, 1440 RPM, 415 V, 50 Hz, 3Ph |
| Force feeder motor (2 Nos.) | 0.19 kW / 0.25 hp |
| Overall dimensions (cm) | 148 X 141 X 187 (H) |
| Net weight | 2500 kg |
| Case Dimension (cm) | 170 X 185 X 226 H |
| Grass Weight | 2835 kg |
NOTE : DUE TO CONTINIOUS IMPROVEMENTS IN THE MACHINERIES, SPECIFICATION OF THE MACHINERIES IS SUBJECT TO CHANGE WITHOUT ANY PRIOR NOTICE.
